Mini Optical Receiver CATV Optical FTTH Node with WDM

FOB Reference Price:Get Latest Price
$6.00 - $15.00 / Piece | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
SOFTEL
Model Number:
SR100B-WD
Name:
Mini Optical Receiver Box Type FTTH Node with WDM
CATV work Wavelength:
1550nm
Optical Connector:
SC/APC or FC/APC
Responsivity:
≥0.9
Work Bandwidth:
47~1000MHz
RF tire-in:
F- female
Dimensions:
85.5*100*24
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
standard packing
Port
Shanghai,ningbo

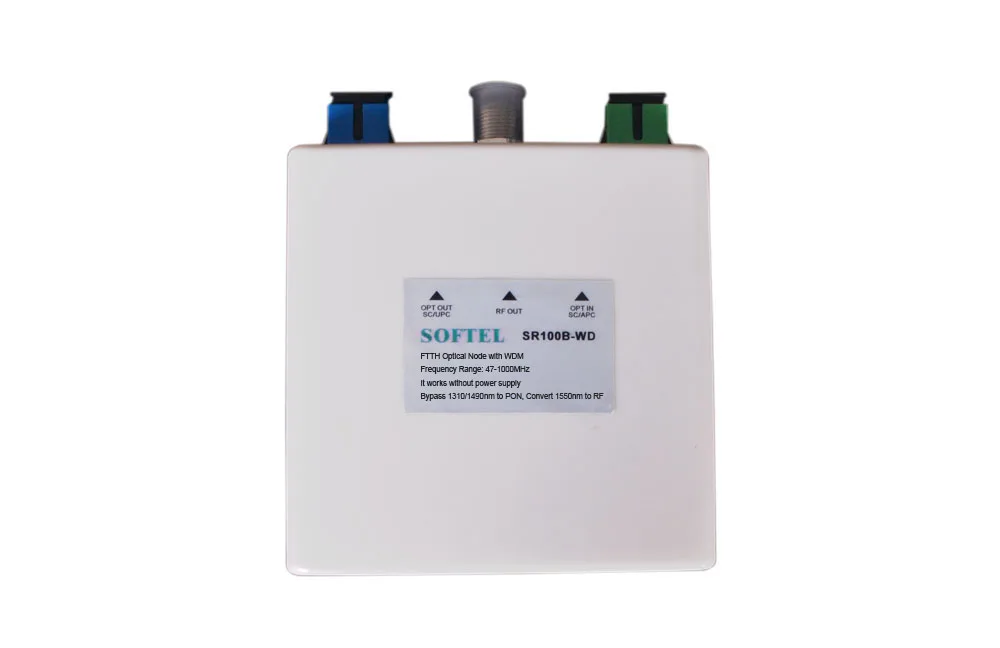

SR100B-WD

SR100B-WD 1.jpgSR100B-WD_3).JPG03.jpg

Summary

SR100B-WD, built in WDM, is designed for FTTH(Fiber To The Home) networks. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption.

Features

  • No Power required
  • Work bandwidth 47~1000MHz
  • Output Level ≥ 62dBuV (Pin=-1dBm)

 Application

  • CATV FTTH
  • Integration of three networks
  • FTTH PON

Specifications



Number ItemUnitDescription
RF Connector F-female
Optical Connector SC/APC or FC/APC
ResponsivityA/W≥0.9
Input Optical PowerdBm-10~0
Receive Wavelengthnm1550
Bypass Wavelengthnm1310/1490
Optical Fiber Type Single Mode
Frequency RangeMHz47-1000
Output LeveldBµV≥62dBuV@-1dBm
Dimensionsmm85.5*100*24
